Intelligent Auto Pilot System SAS-70 + SM-975
Bandingkan
Features :
- High contrast 5.6 colour TFT LCD
- NMEA 2000 interface / multi talker-multi listener

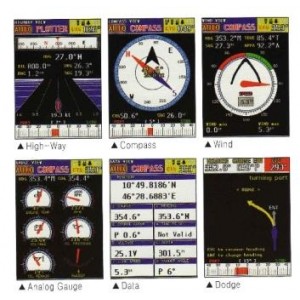

- Various navigation data displays in one screen and it improves the concentrations of auto steering
- Wide range of applications is easily available by data line sharing(water depth/temperature/vessel speed,fuel gage, wind direction/speed unit and so on)
- Simply to connect existing auto pilot system
- Available on auto navigation interfacing with GPS Plotter
| Specifications | |
| Display | 5.6" color TFT LCD |
| Power | +24VDC |
| Power Cumsumption | Max. within 85W |
| Heading Angle Resolution | 0.5' (Electronic Compass) |
| Direction setting resolution | 1' |
| Temperature | -15'C ~ + 55' C |
| Components | |
| SAS-70 | SM-975 |
| Display unit (SAS-70) | Electronic lever (SM-975) |
| Control unit (SAS-70C) | Wire remote (RC-30) |
|
Remote connecting unit (SAS-70A) |
|
|
Electronic compass (ES-95) |
|
|
Angle sensor |
|
|
Solenoid (SV-20L) |
|
|
Wire remote controller (RC-10A) |
Angle Indicator (FM-80B) |
